application

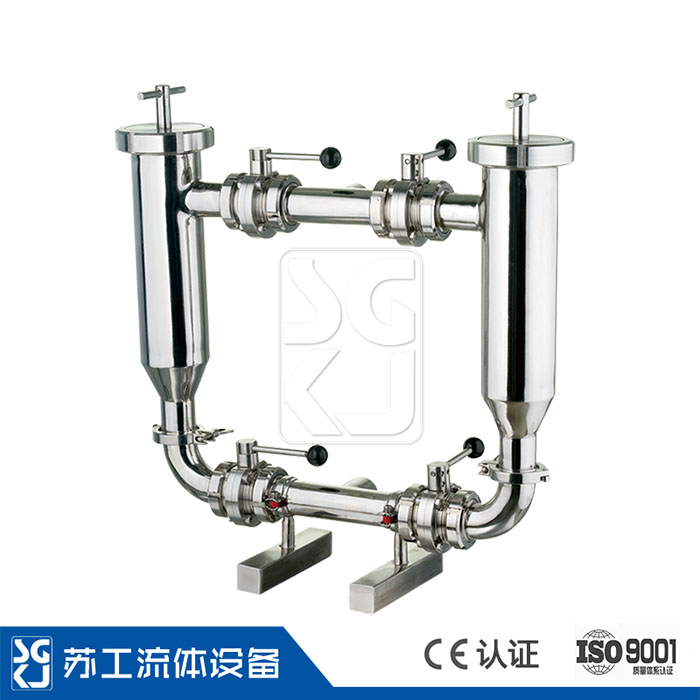

   The filter is designed with a fully detachable structure for easy replacement of accessories. The main function is to remove a small amount of solid particles and maintain the normal operation of other equipment. When the fluid enters the filter cylinder, the filter mesh is extremely small, the particulate object is blocked by the filter net, and the filter mesh is extremely small, and the cleaning liquid is discharged. The two cylinders can be removed and cleaned online. Widely used in food, beer, beverage, chemical and other industries.

Technical Parameters

◆Specifications: 1"~4" DN25~DN100

◆Connection method: welding, quick loading, thread

◆Filter accuracy: 30 mesh, 40 mesh, 60 mesh, 80 mesh, 100 mesh, 120 mesh, 150 mesh, 200 mesh, 240 mesh, 260 mesh, 300 mesh, 320 mesh, 360 mesh, 400 mesh

◆Working temperature: -10 ° C to 120 ° C

◆Contact with material: SS304/SS316L

◆Inside surface contact product: Ra≤0.6μm

◆Sealing: EPDM, Silicone Rubber (SI), Fluororubber (FPM)
